Solvers

A solver is the part that steps a simulation forward in time. Diokle turns the model into the form der(x) = f(t, x), where x is the list of state variables, such as positions and temperatures, and der(x) is how fast each one changes. The solver takes that form and advances x one small step at a time. Every method handles events the same way (finding the exact moment a condition flips, such as a valve opening, and restarting cleanly from there), along with the output grid and the statistics.

The default is almost always right. Change it only when a run is slow or fails.

A model is stiff when some parts change very quickly while others change slowly. A method that is fast on normal models becomes very slow on stiff ones, because it must take tiny steps to stay accurate. Stiff models need an implicit method, which costs more per step but can take much larger steps.

daedalus simulate model.mo -m M --method radau           # pick a method
daedalus simulate model.mo -m M --method bdf --jacobian fd   # finite-difference Jacobian
daedalus test-library lib -m Pkg --method auto            # sweep with one method

#The idea in brief

The solver advances the state $x$ from $t_n$ to $t_{n+1} = t_n + h$ for $\dot{x} = f(t, x)$. Each step is accepted when the local error estimate is within tolerance,

and otherwise retried with a smaller step $h$. The step is grown again when the error is small.

What separates the methods is how they treat stiffness. Near a point, $f$ acts like the linear system $\dot{x} = J\,x$ with $J = \partial f / \partial x$. If some eigenvalue $\lambda$ of $J$ is large and negative, the solution decays fast, and an explicit method such as Dopri5 must keep $h\,|\lambda|$ below about 3.3 for stability, however smooth the solution looks. An implicit method stays stable at any step size, but it solves an equation at each step:

• BDF solves $\sum_{j=0}^{k} \alpha_j\, x_{n+1-j} = h\,f(t_{n+1}, x_{n+1})$ with Newton's method. Each Newton iteration uses the matrix $\alpha_0 I - h\,J$, which is why the Jacobian is needed.
• Radau IIA and ESDIRK take several stages per step, each one a Newton system of the same kind, with a higher order per step.
• Dopri5 is explicit: fast on non-stiff models, and unusable on stiff ones. Auto runs Dopri5 until stiffness appears, then switches to BDF, and back when the model calms down.

The tradeoff is cost per step against step size. Explicit steps are cheap but small when the model is stiff; implicit steps are expensive but can be long.

#Per-model choice

The experiment annotation selects the method when --method is not given. __Dymola_Algorithm (or __Daedalus_Algorithm) maps to the closest method:

#State Jacobian

The implicit methods (BDF, Radau, ESDIRK, and BDF inside Auto) need J = df/dx. Columns that share no row are grouped by a greedy coloring of the dependency pattern, so one pass gives a whole group.

• Exact (default). Each pass is a forward-mode (tangent) run of the compiled tape, seeded with the states of one color group, the same machinery as linearize. Algebraic loops are differentiated implicitly with their symbolic Jacobians. There is no truncation error and no step-size choice. If a column comes out non-finite, that evaluation falls back to differences.
• Forward differences (--jacobian fd, SimOptions::jacobian = Fd): one right-hand-side evaluation per color group. This reproduces the BDF step sequence of earlier versions.

Both cost one pass per color. A tangent pass costs about one to two right-hand-side evaluations, so the exact Jacobian is about as cheap as the differences, and its columns are accurate to rounding. The statistics count tangent passes separately (tangent_evals).

Up to 48 states the iteration matrices are dense; beyond that they use the sparse LU with a minimum-degree ordering. Radau's complex system ((α + iβ)/h) I - J is solved as the real 2n × 2n system with the real and imaginary part of each unknown next to each other, which keeps the sparsity.

#Radau IIA

Try Radau when BDF is slow on a very stiff or oscillating model. The notes below describe how it is built.

src/solver_radau.rs follows Hairer & Wanner's RADAU5 (Solving ODEs II, IV.8): three Radau IIA stages (order 5, L-stable, stiffly accurate).

• Simplified Newton in transformed variables: one real factorization of (γ/h) I - J and one complex one per step size, instead of a 3n × 3n system. The Jacobian is kept while Newton contracts faster than 0.01; the factorizations are kept while the step size changes by less than 20 %.
• Starting values from the collocation polynomial of the last step.
• Embedded error estimate filtered by ((γ/h) I - J)^-1; predictive (Gustafsson) step-size control. Tolerances are mapped as RADAU5 does (0.1 rtol^(2/3)).
• Dense output: the collocation polynomial.

#ESDIRK

ESDIRK suits stiff models that have many events, because each restart after an event is cheap. The notes below describe how it is built.

src/solver_esdirk.rs is ESDIRK4(3)6L[2]SA of Kennedy & Carpenter: six stages, an explicit first stage, diagonal γ = 1/4, L-stable and stiffly accurate, order 4 with an embedded order-3 solution. All implicit stages share one factorization of I/(hγ) - J. The error estimate is filtered by (I - hγ J)^-1. Stage predictors extrapolate the last step's Hermite interpolant. Dense output is cubic Hermite.

#Dense output check

On stiff problems whose solution follows a slowly varying quasi-static state (a fast sensor lag tracking an input), a stiffly accurate one-step method hits the step end points exactly and nothing limits the step size. The output points in between are interpolated, and with steps of seconds they can be far off. Radau and ESDIRK therefore also estimate the error of their dense output at the middle of each step: the defect u' - f(t, u) of the interpolant, filtered by the iteration matrix. A step whose dense output misses the tolerance is rejected. This costs one or two function evaluations per step.

#Auto switching

--method auto (src/solver_auto.rs) starts with Dopri5.

• To BDF. After every accepted step, Dopri5 estimates h |λ| from its last two stages, which are at the same time (Hairer's stiffness test). When the estimate exceeds the stability limit 3.25 on 15 accepted steps, without 6 non-stiff steps in a row in between, the step size is limited by stability and the run switches to BDF.
• Back to Dopri5. On BDF, the spectral radius ρ of the Jacobian (power iteration, refreshed when the Jacobian is) tells whether Dopri5 could take the current step. After at least 20 BDF steps, 15 steps in a row with h ρ < 1 switch back. If the run turns stiff again within 100 Dopri5 steps, the number of calm steps needed doubles (up to 960), so a model that keeps turning stiff stays on BDF.
• On failure. If Dopri5 fails (step size too small, typically at a discontinuous or very stiff start), the run restores the algebraic-loop guesses that its trial stages may have spoiled and carries on with BDF from the last accepted point.

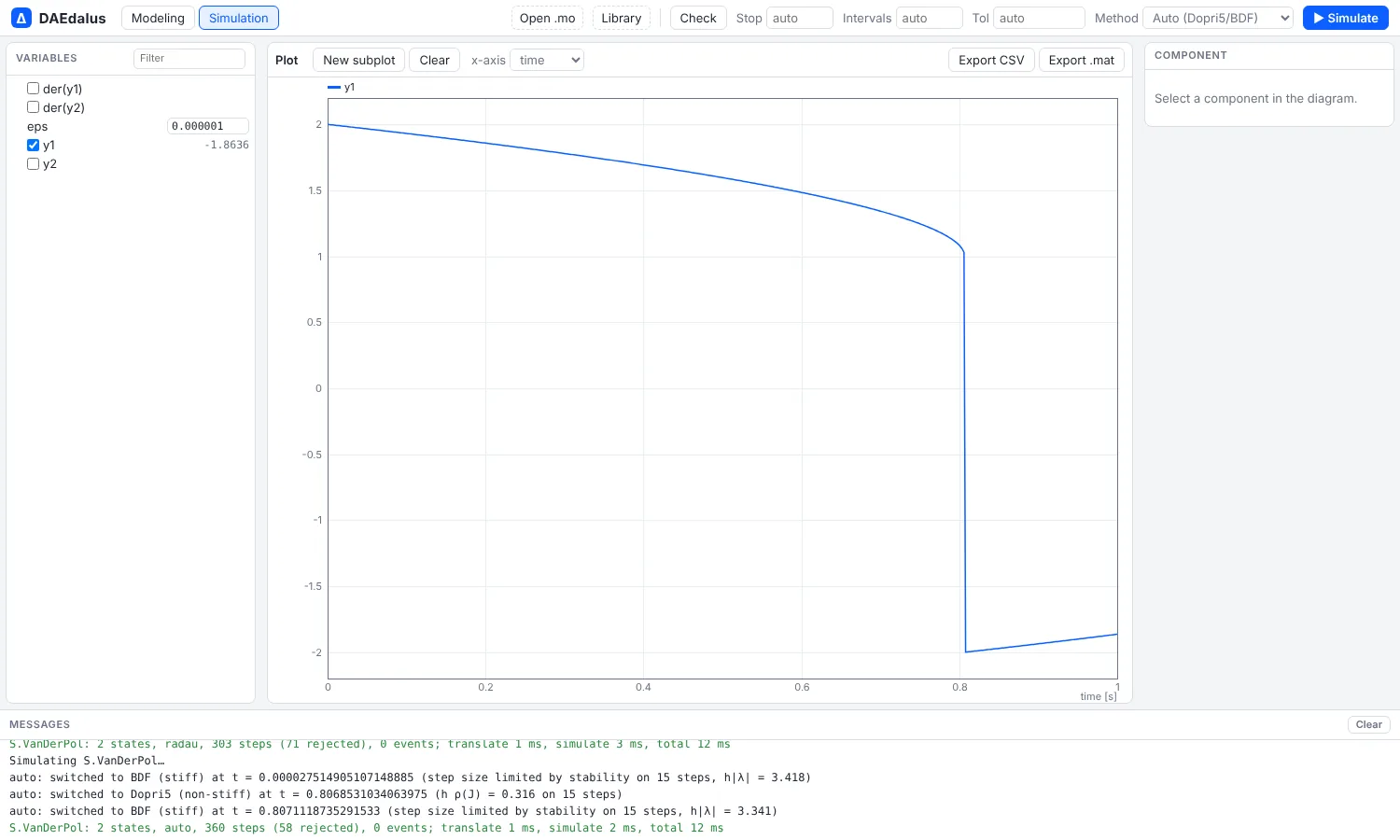

Each switch is written to the simulation log (the first 20 of them) and counted in SolverStats::switches:

auto: switched to BDF (stiff) at t = 2.75e-05 (step size limited by stability on 15 steps, h|λ| = 3.418)
auto: switched to Dopri5 (non-stiff) at t = 0.8069 (h ρ(J) = 0.316 on 15 steps)

#Statistics

SimStats.solver (CLI summary line, workbench log, wasm JSON) has steps, rejected, newton_failures, rhs_evals, jac_evals, lu_factorizations, tangent_evals, stiff_steps (Dopri5 steps that failed the stiffness test) and switches. SimStats.method names the method used.

#Choosing in the workbench

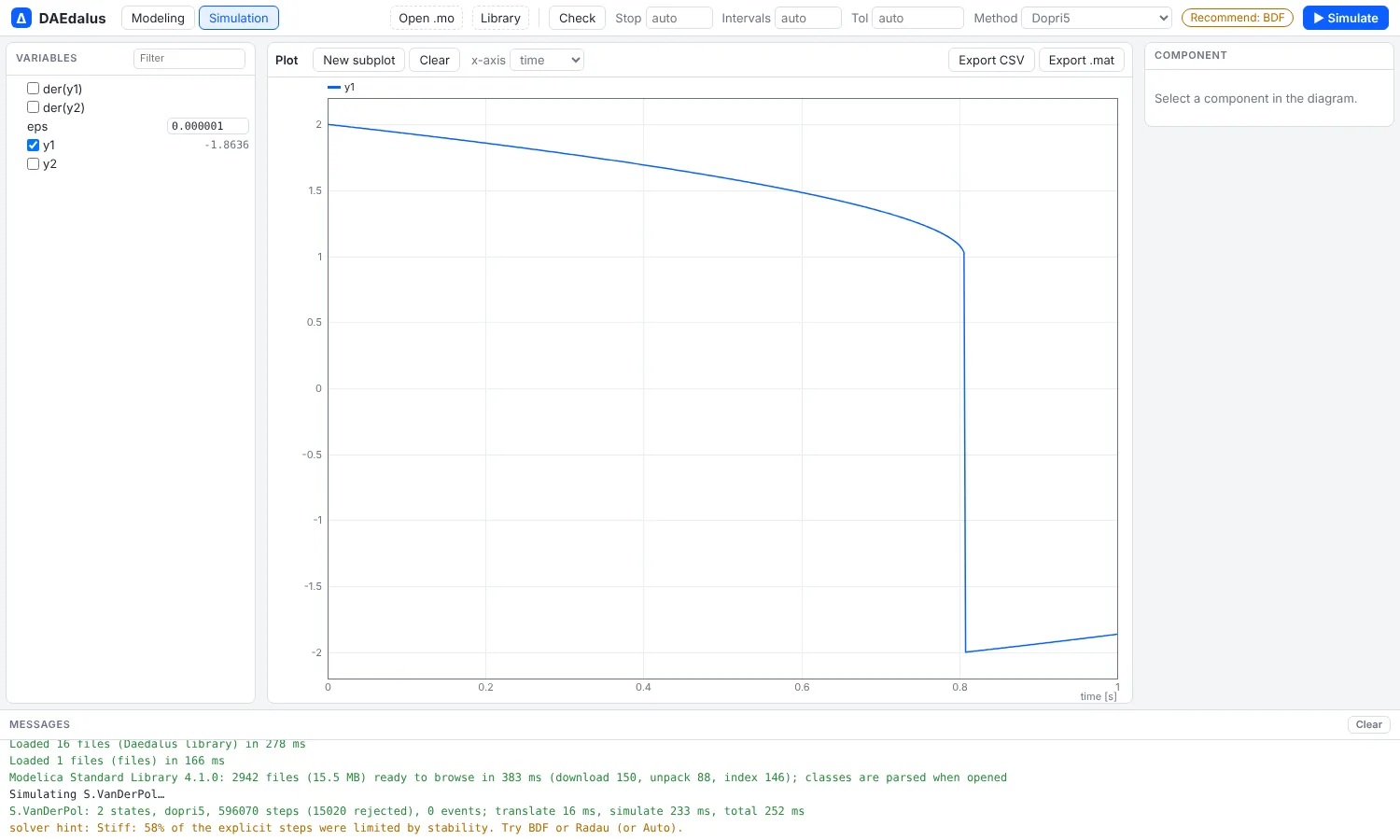

The Method select groups the methods into stiff, switching, non-stiff and fixed step, each with a one-line tooltip. "model default" uses the experiment annotation. After a run, web/src/solver-hint.ts reads the statistics and may show a Recommend chip:

• an explicit method with more than 20 % of its steps limited by stability (the stiff signature), or more than 30 % rejected steps: try BDF or Radau;
• an implicit method with Newton failures on more than 20 % of the steps, or more than 40 % rejected steps: try the other stiff method;
• Auto with more than 20 switches: use BDF.

Clicking the chip selects the method for the next run. The hint uses only the run statistics. It does not do an eigenvalue analysis.

#Tests

crates/daedalus-core/tests/solvers.rs with tests/models/stiff.mo:

• Robertson's kinetics at t = 40 and at t = 1e11, and Van der Pol with mu = 1000 (VDPOL, eps = 1e-6, t = 2), against the reference values of Hairer & Wanner's test set, for BDF, Radau, ESDIRK and Auto.
• Prothero–Robinson with λ = -1e6 (stiff accuracy, and dense output between steps).
• A linear problem with an analytic solution: accuracy, dense output, and the convergence order with the step forced by max_step (observed 4.99 for Radau, 4.00 for ESDIRK).
• A 60-cell heat equation (sparse Jacobian and sparse complex system) against its steady state.
• The bouncing ball with every new method (event times and heights).
• Auto switching both ways on a problem that is stiff only for 5 < t < 15.
• Exact Jacobian against central differences (also through an algebraic loop), and BDF with exact and FD Jacobians giving the same results.
• __Dymola_Algorithm names and the experiment annotation.

solver_esdirk.rs checks the order conditions of the tableau (4 for the solution, 3 for the embedded one).

#Comparison

Best of three runs on a shared 4-core machine, so the times are approximate. "f-evals" counts right-hand-side evaluations; with the exact Jacobian the tangent passes are in parentheses after the Jacobian count. The bdf (before) rows are the previous release with its finite-difference Jacobian. All runs use each model's experiment tolerance unless stated.

Notes:

• The exact Jacobian leaves the BDF step sequence essentially unchanged and saves the right-hand-side evaluations of the differences. On the Daedalus examples, BDF with the exact Jacobian and the previous BDF agree with a 1e-10 reference run equally well (the same worst state error on each of the six examples checked). --jacobian fd reproduces the previous step counts exactly.
• Radau takes 2–3 times fewer steps than BDF. Each step costs more (three stages and a complex factorization), so it pays off on very stiff problems at tight tolerances rather than on these event-heavy examples.
• ESDIRK takes the fewest steps but needs more Newton iterations per step on strongly nonlinear problems (Van der Pol).

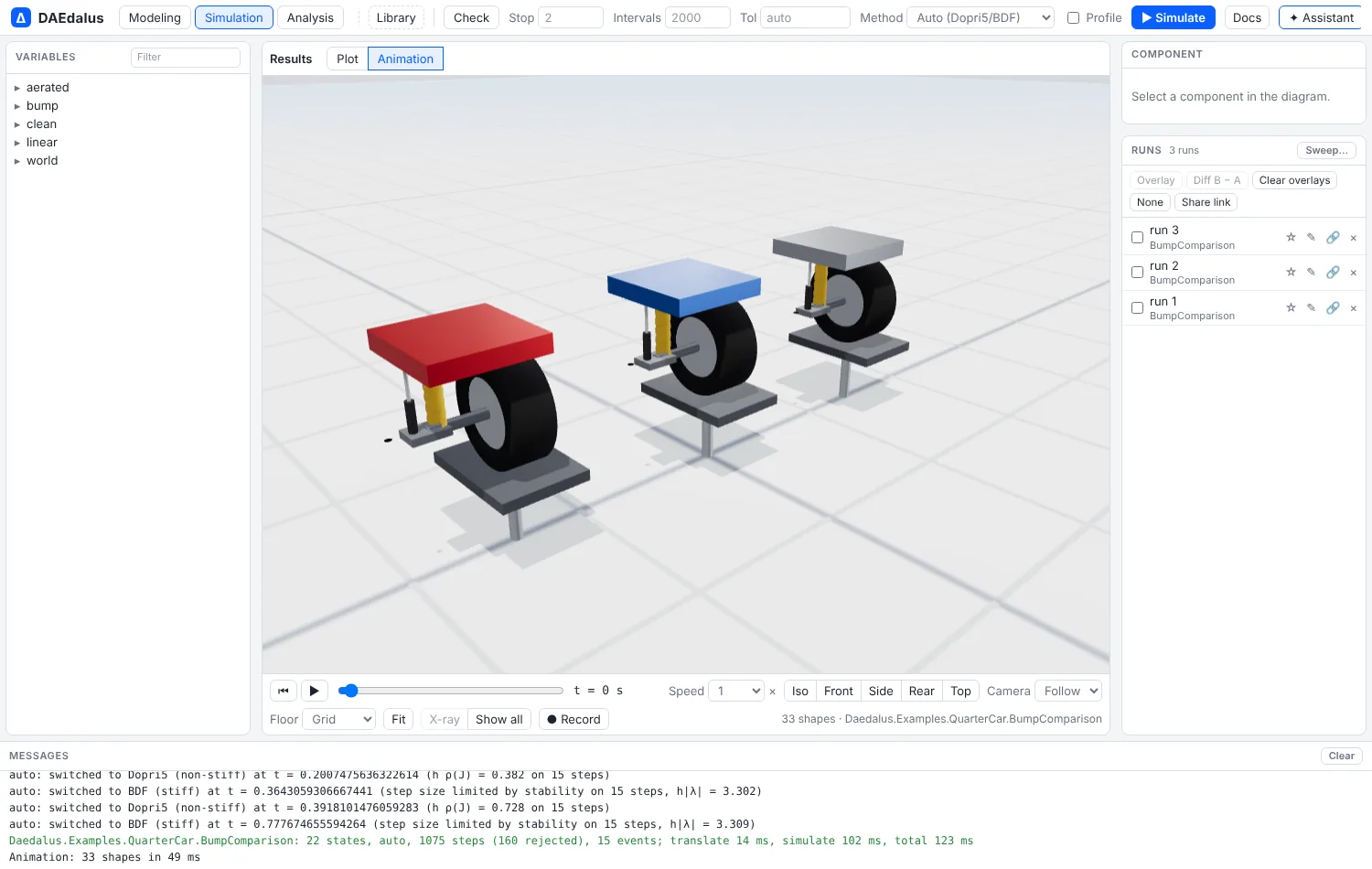

• Auto is the fastest on the Daedalus examples: they are stiff only in parts (hydraulic transients, contact), and Dopri5 is cheap in between.

#Modelica Standard Library sweep

daedalus test-library msl -m Modelica --jobs 3 --timeout 60 over the 534 example models of MSL 4.1.0 (the bundle the workbench loads), each method at the experiment tolerances:

• bdf, exact vs previous. One model is gained (Fluid.Examples.TraceSubstances.RoomCO2WithControls) and one is lost (Fluid.Examples.Tanks.TanksWithOverflow: event chatter at tolerance 1e-6. It passes with --jacobian fd, at other tolerances, and with radau, esdirk and auto).
• radau passes seven models that BDF fails (SimpleTriacCircuit, IMC_YDarc, Dimmer_RL, SoftStarter, SMEE_LoadDump, RobotR3.OneAxis, TanksWithOverflow). It fails or times out on some that BDF passes (DemoPowerSupplyWithBuffer, PolyphaseRectifier, ChopperStepDown_RL, HBridge, RoomCO2WithControls).
• auto passes TanksWithOverflow and fails DemoPowerSupplyWithBuffer: the model's back-current assertion fires during a Dopri5 phase. Models where Dopri5 cannot start (hysteresis tables, the heat exchanger) fall back to BDF at once.
