Libraries, packages and parameter data

A library is a package of ready-made model parts, such as motors, pipes or springs, that your own models can use. Diokle installs open Modelica libraries by name and checks their versions. It packs a model with the files it needs into one zip, compares two versions of a class structurally, and turns parameter tables into Modelica modifiers.

#Installing libraries

daedalus lib index                                    # the index of open libraries
daedalus lib install Buildings@12.1.0                 # by name and version
daedalus lib install https://github.com/owner/MyLib@v1.2.0
daedalus lib install ~/Downloads/OpenIPSL-3.0.1.zip   # a downloaded release
daedalus lib list
daedalus lib resolve model.mo                         # uses(...) -> installed versions, conflicts

Modelica                 4.1.0, 4.0.0         Modelica Standard Library
Buildings                12.1.0, 11.1.0, 10.0.0 Building energy and control systems (LBNL)
ThermoSysPro             4.0                  Thermal-hydraulic power plants and energy systems (EDF)
OpenIPSL                 3.0.1, 2.0.0         Power system dynamics: phasor-domain models of grids and machines
VehicleInterfaces        2.0.1, 1.2.5         Standard interfaces for vehicle subsystems (Modelica Association)
ExternData               3.0.3                Read data from CSV, INI, JSON, MATLAB, TIR, XML and Excel files
AixLib                   2.1.1, 1.3.2         Building performance simulation (RWTH Aachen E.ON ERC)
Modelica_DeviceDrivers   2.1.1                Interfaces to hardware devices and communication protocols
Modelica_LinearSystems2  2.4.0                Linear systems: analysis, controller design, model reduction
PhotoVoltaics            2.0.0                Photovoltaic cells, modules, inverters and plants
...

Libraries go to $DAEDALUS_LIBRARIES (default ~/.daedalus/libraries). Every command resolves the uses(...) annotations of what it loads against the installed libraries, picking the exact version, or else the newest of the same major version. It warns about conflicting requirements.

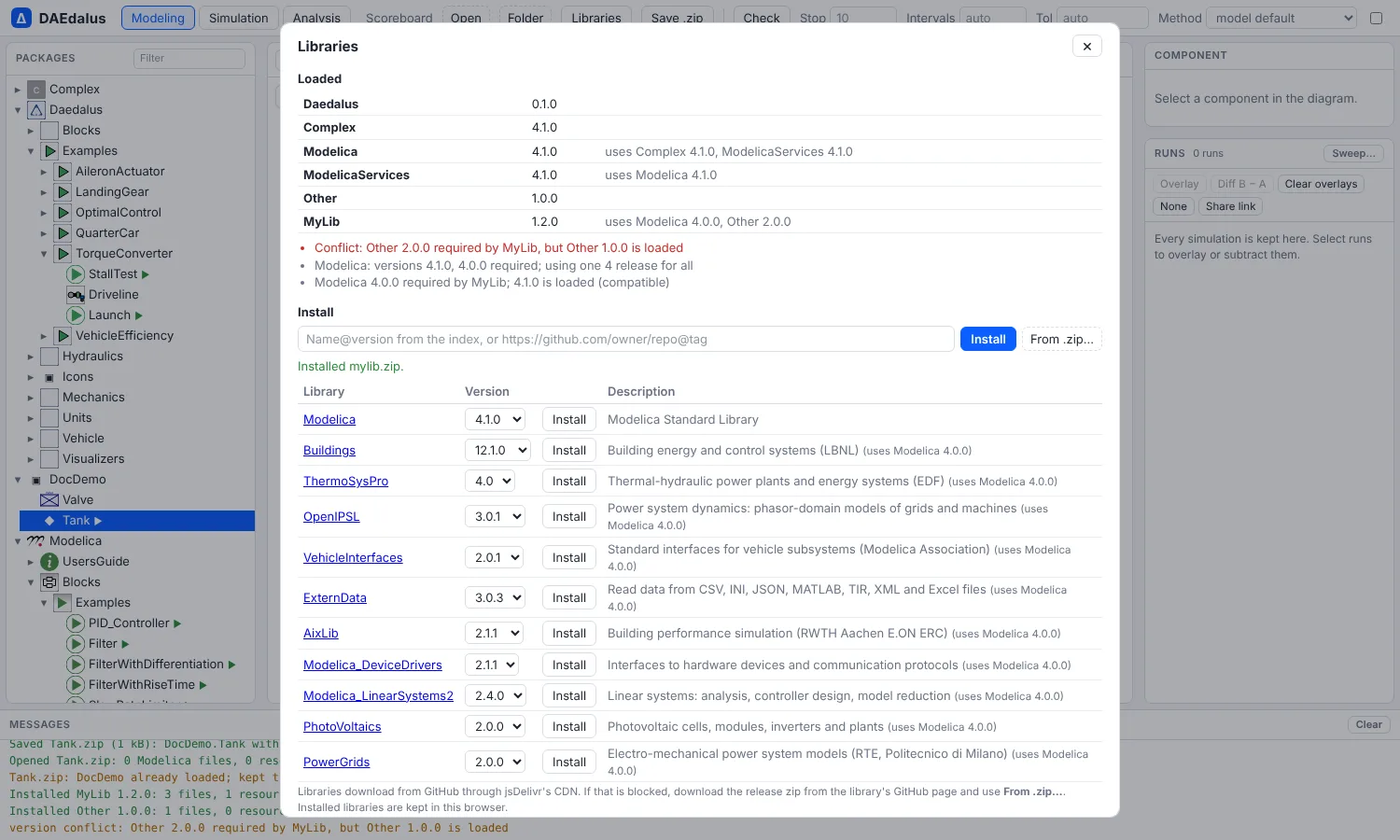

In the workbench, Libraries lists the loaded libraries with their versions, any uses conflicts and missing libraries. It installs a library from the index, a GitHub URL or a zip you pick, and keeps installed libraries in the browser for the next visit.

#Packages

daedalus package library/Daedalus -m Daedalus.Examples.TorqueConverter.Launch -o Launch.zip
daedalus simulate Launch.zip -o launch.mat

A package is a zip of the model with the files and modelica:// resources it needs. The MSL is named in its manifest, not copied. Any command opens a .zip source again, and so does Open in the workbench; Save .zip writes the open model as a package.

#Comparing versions

daedalus diff compares a class structurally: components, parameters, modifiers, placements, connections and equations. --text adds the unified text diff and --format json gives it as data.

daedalus diff old/Demo.mo new/Demo.mo -m Demo.Plant

class Demo.Plant
  components:
    ~ r : Modelica.Electrical.Analog.Basic.Resistor
        modifier R: 100 -> 220
    ~ c : Modelica.Electrical.Analog.Basic.Capacitor
        placement changed (moved in the diagram)
    + leak : Modelica.Electrical.Analog.Basic.Resistor
  connections:
    + connect(leak.p, c.p)
    + connect(leak.n, ground.p)

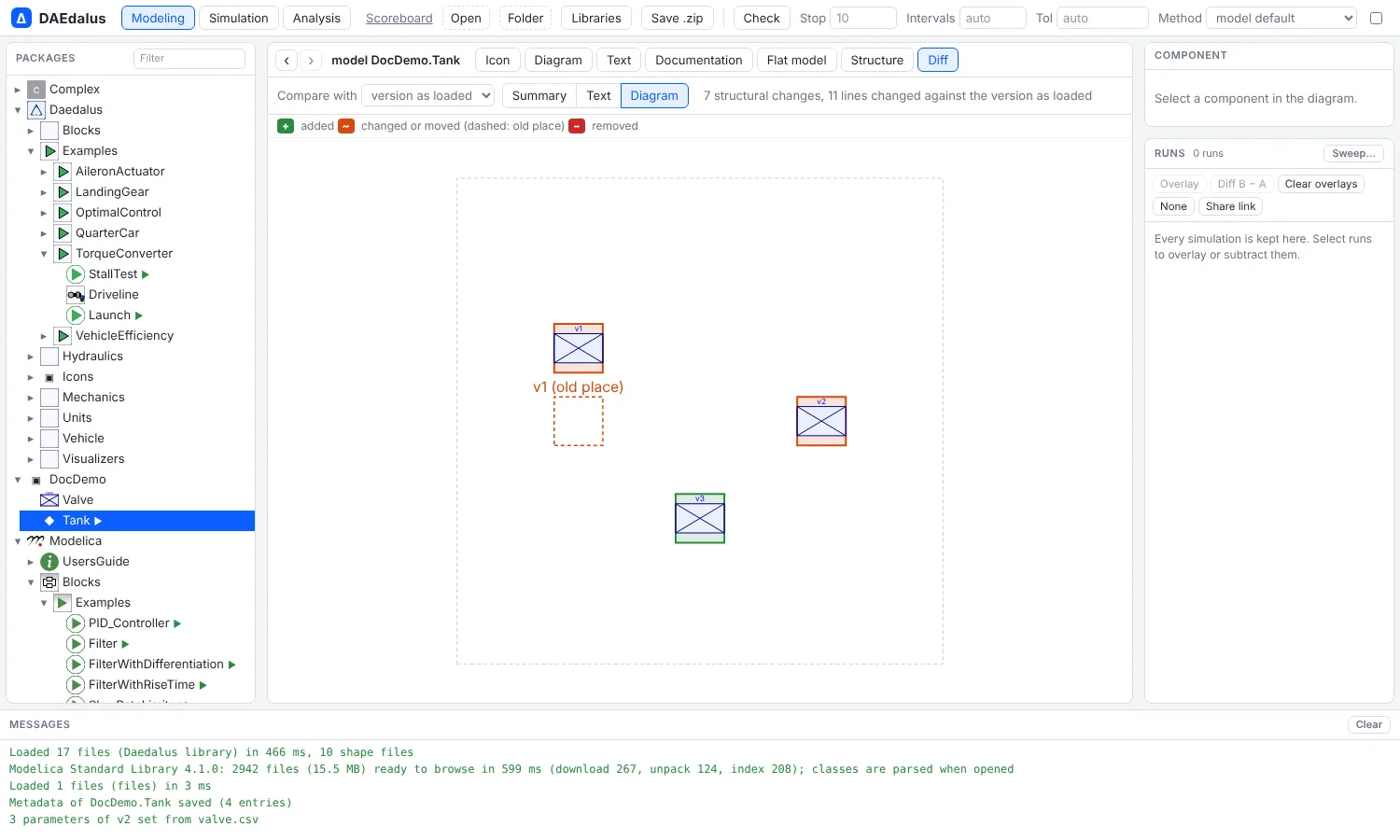

In the workbench, Diff compares the open class with the version as loaded, or with a file you pick. It shows a summary, the text diff, and the diagram. Added, changed and removed components and connections are highlighted, and moved ones show their old place dashed.

#Parameter data

params-from reads parameter values from a CSV file (name,value[,unit]) or an SSP .ssv file. It checks them against the component's type, converts them to its units (mm to m, bar to Pa, rpm to rad/s and so on) and prints a modifier:

daedalus params-from library/Daedalus -m Daedalus.Examples.TorqueConverter.StallTest -c engine engine.csv

note: w_start = 1000 rpm converted to 104.71975511966 rad/s
engine(J = 0.25, tau_drag = 25, w_start = 104.71975511966)

--record Name prints a record instead, and --apply writes the modifier into the source. In the workbench, Import parameters… in the component inspector does the same and applies the values to the declaration, with undo.

#Documentation

The Documentation view renders a class's info and revisions HTML, sanitized, with modelica:// class links that navigate and images from library resources. Documentation that does not start with a tag is treated as Markdown, with $...$ and $$...$$ LaTeX. The __Daedalus_metadata(key = "value", ...) annotation is shown and edited there.
