Embedded C code and processor in the loop

In plain terms: you design a controller in Modelica, Diokle turns it into C code for a microcontroller, and then you test that code against a simulated plant before any hardware is involved.

daedalus codegen-c turns a Modelica model with top-level inputs and outputs, typically a controller block, into portable C99 that advances it by a fixed step. daedalus hil then runs that code in closed loop with a plant model simulated by Diokle: on your computer (software in the loop), on an emulated Arduino Uno or ESP32, or on a real board over its serial port (processor in the loop). Every pull request runs the whole ladder in CI and compares it with the all-Modelica loop.

The gains themselves can be tuned on the closed loop first with daedalus autotune (see Tuning the gains).

#The generated code

daedalus codegen-c library/Daedalus -m Daedalus.Examples.Embedded.DiscretePID \
  --step 0.01 --prefix pid --hil -o pid

wrote 19 files to pid: 2 inputs, 1 outputs, 0 states, 0 algebraic loops;
36 persistent registers (151 bytes of RAM per instance, float)
note: in float the sample times stay distinct for 46.6 h of continuous running; restart the controller before then, or use --real double
  input  0   r (PID_IN_r)
  input  1   y (PID_IN_y)
  output 0   u (PID_OUT_u)

pid.h and pid.c are all a project needs:

#include "pid.h"

static pid_t ctl;

void setup(void)
{
    pid_init(&ctl);                       /* parameters and default inputs */
    pid_set_input(&ctl, PID_IN_r, 0.0f);
    pid_set_input(&ctl, PID_IN_y, read_speed());
    pid_start(&ctl);                      /* initial equations and events at t = 0 */
}

void every_10_ms(void)                     /* timer interrupt or RTOS task */
{
    pid_set_input(&ctl, PID_IN_r, setpoint);
    pid_set_input(&ctl, PID_IN_y, read_speed());
    if (pid_step(&ctl) != PID_OK) fault();
    write_pwm(pid_get_output(&ctl, PID_OUT_u));
}

What the code does and does not do:

• No heap, no recursion, no I/O. One struct per instance holds all state, so several controllers can run side by side. Every loop has a fixed bound.
• float or double (--real), chosen at generation time. Use float on AVR (where double is 32-bit anyway) and on the ESP32's single-precision FPU.
• Continuous states are integrated with classic RK4 (default) or explicit Euler (--integrator euler), one step per call. Inputs are held for the step.
• Events. Relations are latched during the step and checked at its end; when, sample, pre, reinit, terminate and assert follow the same event iteration as the simulator. A sample(start, interval) whose instants fall on step boundaries fires exactly there, so a discrete controller sampled at the step size is reproduced to rounding.
• Algebraic loops are solved with damped Newton on the exact symbolic Jacobian and a small LU with partial pivoting on the stack.
• Lookup tables (linear, constant and Akima/Fritsch-Butland segments, periodic extrapolation) become const arrays.
• Small. A register used by one function only becomes a local variable, constants become literals, and dead code is removed, so the persistent state is only what has to survive between calls: the discrete PID above needs 151 bytes of RAM and 5.2 kB of flash on an ATmega328P.
• Clean. The generated code compiles without warnings under -std=c99 -Wall -Wextra -Wconversion -Wshadow -pedantic.
• Parameters are computed once in init; -p name=value bakes other values in.
• Assertions outside when clauses are checked after every step and set the ASSERTION status bit, as the simulator would stop on them.
• Long runs. Time is the start time plus the step count times the step. In float consecutive sample times stay distinct for 2^24 steps (4.6 hours at 1 ms; codegen-c prints the limit): restart the controller (start) before then, or use double.
• Not supported yet: delay(), functions with while loops, external C functions and 2-D tables (codegen-c says so and stops). Fixed-step integration of a stiff plant needs a small step: generate code for controllers and simple plants, and simulate stiff physics in Diokle.

pid.json lists the inputs, outputs, step and RAM size; daedalus hil reads it. pid_main.c is a small host driver that reads one line of inputs per step on stdin and prints the outputs, for scripted tests.

#The controller in symbols

The PID controller computes the control signal from the error $e = r - y$ (set point minus measurement):

The integral term removes steady error, and the derivative term reacts to how fast the output moves. The DiscretePID model runs the same law once every sample $T_s$ (10 ms here). The derivative is a filtered backward-Euler difference of the measurement, with filter time constant $T_f$:

It acts on $y$, not on the error, so a step in the set point does not kick the output. The integral is updated only while the output is not saturated (conditional integration), which is the anti-windup.

Tuning means choosing $K_p$, $T_i$ and $T_d$. Two ways are shown below: a closed-form rule from a step response, as in Linear analysis, and a search on the closed loop with autotune, which accounts for sampling and limits.

#Closing the loop

The example package Daedalus.Examples.Embedded holds a DC motor speed loop:

• DiscretePID: a sampled PID (10 ms) with anti-windup and derivative on the measurement, written the way it runs on a microcontroller;
• SpeedPI: the library's continuous PI with output limits, discretised by the generator;
• MotorBench: the plant side (DC motor, load step at 1 s, set-point profile), with the motor voltage u as its top-level input and r and y as outputs;
• ClosedLoop and ClosedLoopPI: the bench and a controller connected, the MIL reference.

daedalus hil simulates the bench and, at every sample, sends the bench variables named like the controller's inputs to the controller and applies its outputs to the bench inputs of the same name (--map port=variable wires them otherwise):

make -C pid/hil/host
daedalus hil library/Daedalus -m Daedalus.Examples.Embedded.MotorBench \
  --controller pid/pid.json --exec pid/hil/host/pid_sil --stop 3 -o sil.csv

The result has one row per sample: time, the controller's inputs and outputs, the cycles the step took on the target, and any bench variables given with --vars.

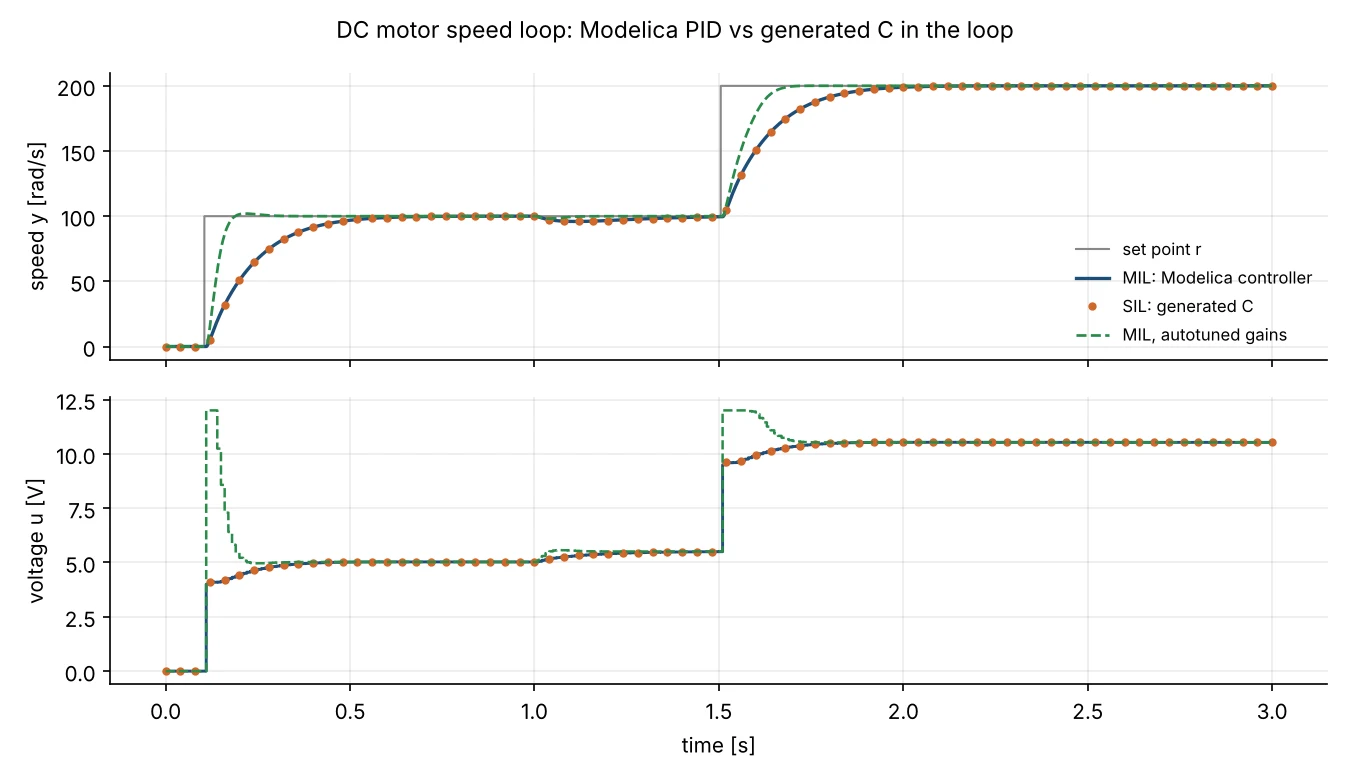

The generated C (dots) follows the Modelica controller (line) sample for sample, through the set-point steps at 0.1 s and 1.5 s and the load step at 1 s. The dashed curve uses the gains autotune finds below.

#Tuning the gains

daedalus autotune tunes controller parameters on the closed loop against a step-response specification: it minimizes an error integral (ITAE by default) over a window around a set-point step while keeping overshoot, control effort and settling time within limits. It simulates the nonlinear loop, so sampling, output limits and anti-windup are part of the tuning, and searches the gains on a log scale between their bounds:

daedalus autotune library/Daedalus -m Daedalus.Examples.Embedded.ClosedLoop \
  --gain pid.kp=0.004:0.4 --gain pid.ki=0.04:4 --gain pid.kd=0.00005:0.005 \
  --reference bench.r --measurement bench.y --control pid.u \
  --window 0.1,1.5 --overshoot 2

autotune of Daedalus.Examples.Embedded.ClosedLoop: 192 runs, 98 iterations; meets the specification

gain                             before          tuned
pid.kp                      4.000000e-2    1.932174e-1
pid.ki                      4.000000e-1     3.656807e0
pid.kd                      5.000000e-4    6.751172e-5

response                         before          tuned   limit
ITAE                             2.7004         0.2348
overshoot (%)                    0.0240         2.0000   2
rise time 10-90 % (s)            0.2560         0.0470
settling time 2 % (s)            1.2010         0.0810
final error (%)                  0.5048         0.0000
max |control|                    5.4973        12.0000

modifier: (pid(kp = 0.1932174, ki = 3.6568069, kd = 6.7511716e-5))

The window here covers the set-point step at 0.1 s and the load step at 1 s, so the tuning trades tracking against disturbance rejection; the run takes under a second. Bake the tuned gains into the firmware with codegen-c -p kp=0.193 -p ki=3.66 -p kd=6.75e-5. --max-control limits the controller output, --settling the 2 % settling time, and --criterion iae|ise changes what is minimized. A good starting point for the bounds is the hand-tuned gain divided and multiplied by 10.

#Arduino Uno in simavr

pid/hil/avr builds the firmware with avr-gcc (no Arduino core needed) for an ATmega328P at 16 MHz, talking over USART0 at 115200 baud. tools/embedded/simavr_bridge.c runs it in simavr, cycle-accurate, with the serial port on stdin/stdout:

sudo apt install gcc-avr avr-libc simavr libsimavr-dev libelf-dev
cc -O2 -o simavr_bridge tools/embedded/simavr_bridge.c -lsimavr -lelf
make -C pid/hil/avr
daedalus hil library/Daedalus -m Daedalus.Examples.Embedded.MotorBench \
  --controller pid/pid.json --exec "./simavr_bridge pid/hil/avr/pid.elf" --stop 3 -o avr.csv

301 samples of 0.01 s in closed loop in 0.16 s wall-clock
controller step: 33358 cycles on average, 35832 at most

At 16 MHz the PID step takes about 2.1 ms of its 10 ms period; the firmware measures it with Timer1. Flash the same pid.hex with avrdude and replace --exec with --serial /dev/ttyACM0 to run on a real Uno.

#ESP32 in QEMU

pid/hil/esp32 builds a bare-metal ESP32 program (no ESP-IDF): the mask ROM loads it from flash offset 0x1000, it enables the FPU, switches off the watchdogs and talks on UART0. It runs on a real ESP32 and in Espressif's QEMU:

# Espressif's toolchain and QEMU: see the "embedded" job in .github/workflows/ci.yml
pip install esptool
make -C pid/hil/esp32
daedalus hil library/Daedalus -m Daedalus.Examples.Embedded.MotorBench --controller pid/pid.json \
  --exec "qemu-system-xtensa -machine esp32 -nographic -monitor none -serial stdio \
          -drive file=pid/hil/esp32/pid_flash.bin,if=mtd,format=raw -nic none" -o esp32.csv

QEMU is not cycle-accurate, so its cycle counts are only indicative; on a real board the firmware reads the CCOUNT register.

#Any Arduino board

pid/hil/arduino/pid_hil/ is a complete sketch (the generated code included) for the Arduino IDE or arduino-cli, for Uno, Nano, Mega and ESP32 boards. It uses the Arduino core's Serial and micros(), so it runs on any board with a serial port:

arduino-cli compile --fqbn arduino:avr:uno pid/hil/arduino/pid_hil --output-dir uno
arduino-cli upload  --fqbn arduino:avr:uno -p /dev/ttyACM0 pid/hil/arduino/pid_hil
daedalus hil library/Daedalus -m Daedalus.Examples.Embedded.MotorBench \
  --controller pid/pid.json --serial /dev/ttyACM0 -o board.csv

The Uno build also runs in simavr (--exec "./simavr_bridge uno/pid_hil.ino.elf"): with the Arduino core it uses 6.1 kB of flash and 483 bytes of RAM, and the step takes 32,000 cycles. The ESP32 build (--fqbn esp32:esp32:esp32, Arduino-ESP32 3.x) runs on a real board; Espressif's QEMU does not boot the Arduino-ESP32 runtime (it stops on a cache error during start-up), which is why the emulated ESP32 run uses the bare-metal build.

#Checking the results

tools/embedded/pil_test.sh runs the whole ladder and compares every run with the Modelica loop (tools/embedded/compare.py); CI runs it with the arduino target too:

The discrete PID matches to single-precision rounding on every target. The continuous PI differs by the sampling of the measurement (zero-order hold at 1 ms) that any digital implementation adds.

#Wire protocol

The firmware prints DAEDALUS-HIL <prefix> <inputs> <outputs> <bytes per real> when it is ready; anything before that line (boot ROM messages) is ignored. The host then sends 0xA5 'I' (first sample) or 0xA5 'S' (every later sample) followed by the inputs, and the firmware answers 0x5A status, the outputs and a 32-bit cycle count. Numbers are little-endian float or double, as generated. The board support is four functions in hil_hal.h, so other boards (STM32, RP2040, any RTOS) need only those.

#A note on certification

The generated code is designed to be reviewable (no dynamic memory, bounded loops, one struct of state, warning-free under strict flags), but Diokle is not qualified for DO-178C or ISO 26262 work. Treat the code as you would hand-written code: review it, test it on the target, and use the SIL and PIL runs above as back-to-back evidence.
