Text editor

The workbench's Text view is a Modelica editor. It uses the compiler's own rules for finding names, so "go to definition", autocomplete and rename behave the way the compiler reads the code. The logic lives in crates/daedalus-core/src/ide.rs and runs in the browser worker.

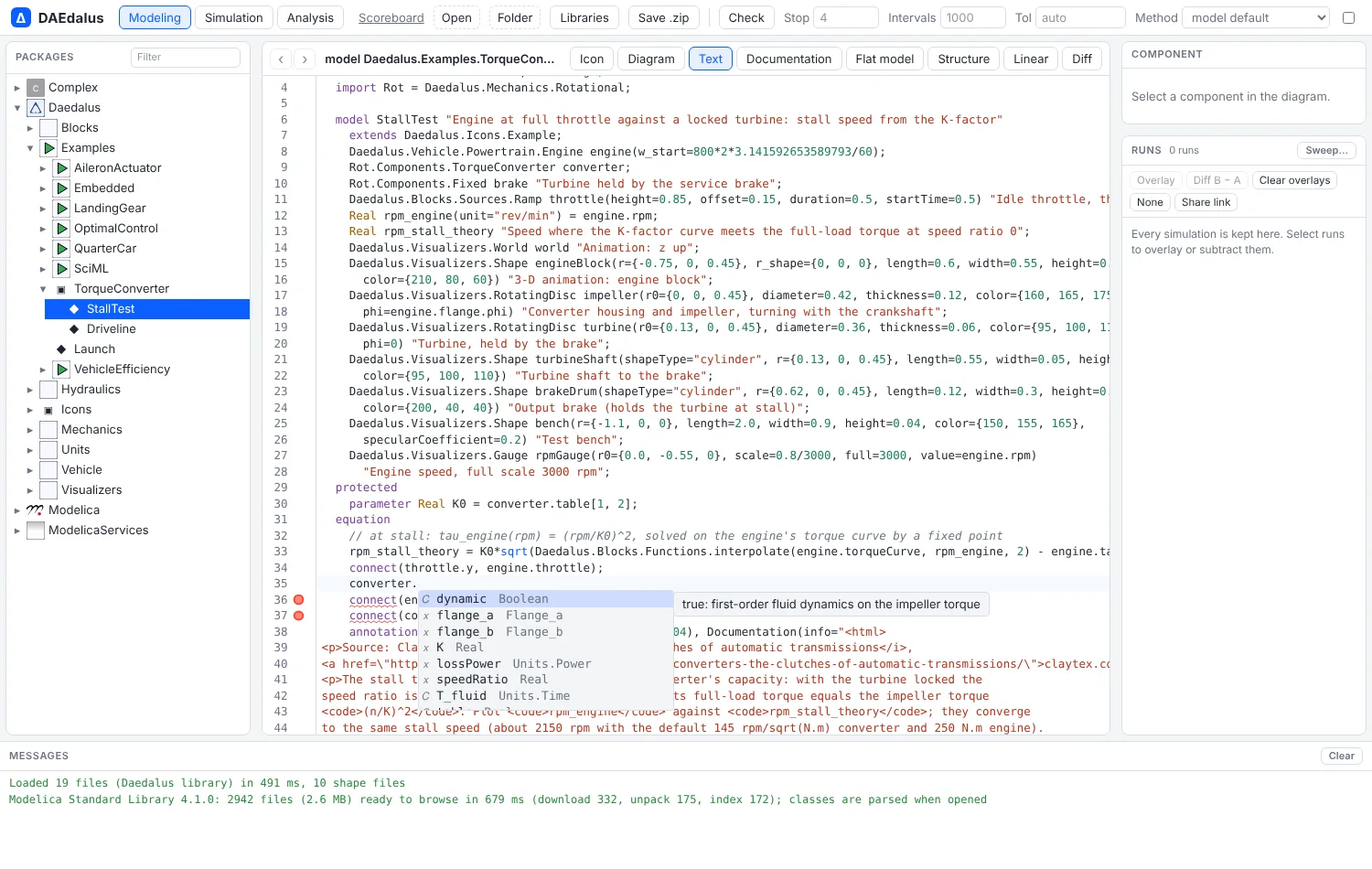

Member completion after converter. in StallTest, with the description of the selected entry

Keys

Key Does
F12, or Ctrl/Cmd-click Go to the definition: opens the class that declares the name and selects it
Shift+F12 Find usages across the loaded documents, in a panel; click a row to go there
F2 Rename a class, component or loop index everywhere it is named
Ctrl+Space, or just type Complete: classes and components in scope, members after a.b., modifier names inside x(...), keywords
Hover Declaration, description, declaring class, type and unit
Ctrl+Shift+O Outline of the document's classes and components

Syntax errors are underlined as you type. Unknown classes are errors, and unknown names, members and modifiers are warnings. Pressing Enter, or typing end, else or equation, indents the Modelica way.

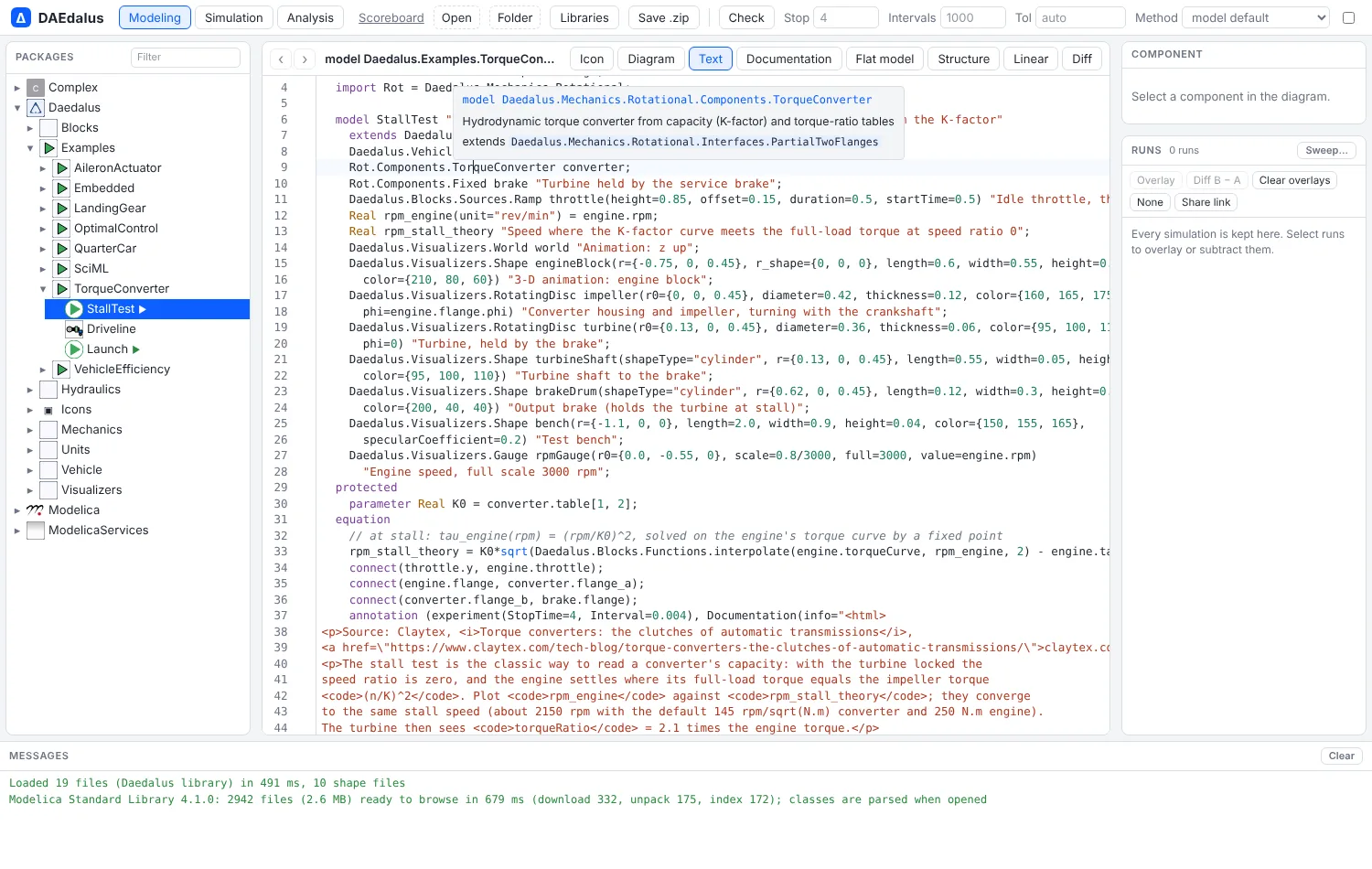

Hover on a component type: the class, its description and what it extends
Hover on a component type: the class, its description and what it extends

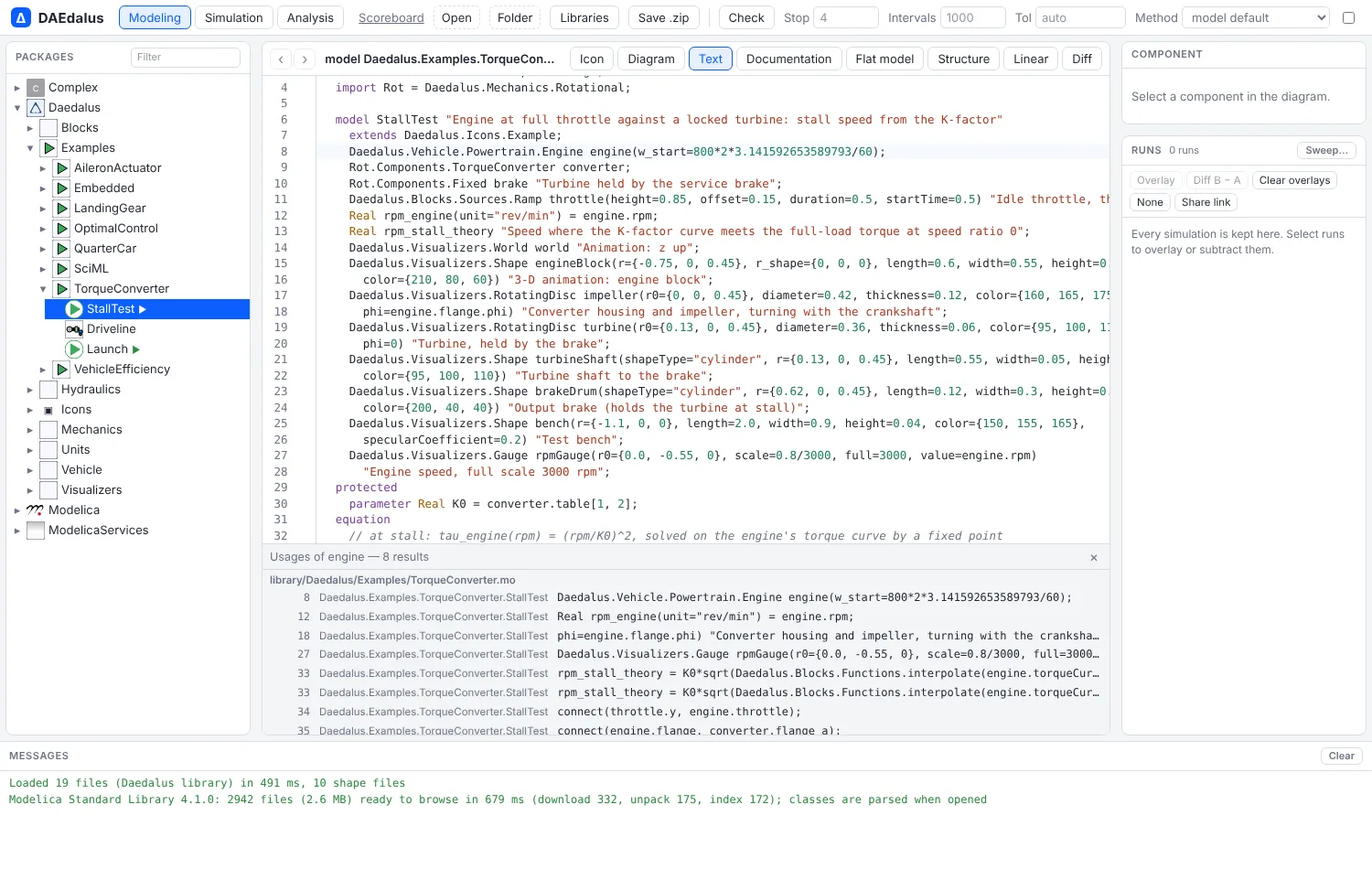

Find usages of engine: 8 results
Find usages of engine: 8 results

Name lookup

Names are resolved with the Modelica lookup rules:

  • enclosing classes;
  • imports: qualified, renamed, unqualified and selective;
  • inherited elements;
  • component types for dotted references in equations (r1.p.v);
  • modifier and named-argument names against the type they modify;
  • enumeration literals and for indices.

Go to definition on an outer component also lists the matching inner declarations. Rename refuses names already taken, keywords, classes stored in their own file, and any edit to the read-only MSL bundle.

Speed

Only the edited document is parsed again on each keystroke. While it does not parse, the last version that did stands in for it, so completion keeps working mid-edit. With the whole MSL parsed (2,554 files), an update plus completion takes about 6 ms natively. Finding the 38 uses of Modelica.Blocks.Sources.Step takes about 85 ms. cargo test -p daedalus-core --test ide checks that every MSL file and the Daedalus library resolve without a single diagnostic.
